MATLAB: How to place a two-lined title, x-label, y-label, or z-label on the plot. break label; line linebreak lined lines m-file MATLAB multilined multiple mutil-lined text; title two two-lined wrap x xlabel y ylabel z zlabel Created: May-05, 2021. This tutorial will discuss how to label lines in the plot using the text() function in MATLAB.. Add Label to Lines Using the text() Function in MATLAB. You can use the text() function to add labels to the lines present in the plot. You need to pass the x and y coordinate on which you want to place the label.

This answer was perfect for multi-line title but it did not answer the part of the question about multi-lined x-labelling (or y-label or z-label). In my case, I would like to have a multi-lined label under a bar graph to give additionnal information on the figure.

Label lines in matlab

clabel(C,h) labels the current contour plot with rotated text inserted into each contour line.The contour lines must be long enough to fit the label, otherwise clabel does not insert a label. If you do not have the contour matrix C, then replace C with []. How can is stick a label on the slanted lines to indicate their values? Or insert a label on the right hand side of the graph that is parallel to the lines?. Look at the text() matlab function. You can add a label at any point and you can even edit the label inside the figure window. 2 Comments. Show Hide 1 older comment. Kim Nguyen on 12... Add a title, label the axes, or add annotations to a graph to help convey important information. You can create a legend to label plotted data series or add descriptive text next to data points. Also, you can create annotations such as rectangles, ellipses, arrows, vertical lines, or horizontal lines that highlight specific areas of data.

Label lines in matlab. That's usually done by annotation, and I think it is done manually.Since you have a lot of graphs and not much space, I suggest you use text to add the label at the end of the line. So in the loop add (under ylabel for example). str = sprintf(' n = %.2f',n); text(x(end),H(end),str); That's what my answer does except instead of using "\n" to indicate a new line, you have to use "\\newline", both of which insert a line feed character but only the later is correctly interpretted by the internal functions that assign the tick labels in Matlab. Here's that approach implemented with your example, below. Is there a way to have a new line in an axis tick label in Matlab to produce a multiline tick label? The two suggestions from here for other text elements don't seem to work: set(gca,'xticklabel',{{'line1','line2'}}) To create a multiline label, use a string array or a cell array of character vectors. Create a Label for One Line. Specify a character vector or a string scalar to display one line of text. To display multiple lines of text, specify a cell array of character vectors or a string array.

The other dimension can vary. MATLAB can plot a 1 x n vector versus an n x 1 vector, or a 1 x n vector versus a 2 x n matrix (you will generate two lines), as long as n is the same for both vectors. The plot command can also be used with just one input vector. Run the command by entering it in the matlab command window. Label data series using a legend and customize the legend appearance such as changing the location setting the font size or using multiple columns. To create a multiline label use a string array or a cell array of character vectors. Line label specified as a character vector cell. Line labels, specified as a character vector, string scalar, cell array of character vectors, or string array. Create a Label for One Line. Specify a character vector or a string scalar to display one line of text.. Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands. Close. Edited: MathWorks Support Team on 17 Mar 2021. You can create a multiline tile using either a cell array or a string array. Each element in the array corresponds to a separate line of text. Here's how to do it with a cell array: plot (1:10) title ( {'You can do it','with a cell array'}) Here's how to do it with a string array: plot (1:10.

Created: October-31, 2021. This tutorial will discuss creating a horizontal line using the yline() function in Matlab.. Plot a Horizontal Line Using the yline() Function in MATLAB. To create a horizontal line, we can use the Matlab built-in function yline(), which plots a horizontal line with a constant vertical value.For example, let's plot a horizontal line on a specific vertical position. Labels and Annotations. Add a title, label the axes, or add annotations to a graph to help convey important information. You can create a legend to label plotted data series or add descriptive text next to data points. Also, you can create annotations such as rectangles, ellipses, arrows, vertical lines, or horizontal lines that highlight. Created: May-05, 2021. This tutorial will discuss how to label lines in the plot using the text() function in MATLAB.. Add Label to Lines Using the text() Function in MATLAB. You can use the text() function to add labels to the lines present in the plot. You need to pass the x. Verified: 1 week ago Show List Real Estate clabel(C,h) labels the current contour plot with rotated text inserted into each contour line.The contour lines must be long enough to fit the label, otherwise clabel does not insert a label. If you do not have the contour matrix C, then replace C with [].

Matlab Legend Working Of Matlab Legend With Examples

The legend () function in MATLAB/Octave allows you to add descriptive labels to your plots. The simplest way to use the function is to pass in a character string for each line on the plot. The basic syntax is: legend ( 'Description 1', 'Description 2',.. ). For the examples in this section, we will generate a sample figure using the.

Horizontal Line With Constant Y Value Matlab Yline

The problem with this is that Matlab cycles through 7 different colors, but doesn't switch the line type automatically when it gets through the colors. So the first 3 and last 3 curves will be the same colors. This way does speed up your code quite significantly.

Control Tutorials For Matlab And Simulink Extras Plotting

Matlab supports plotting multiple lines on single 2D plane. The lines drawn from plot function can be continuous or discrete by nature. The lines for data Y1, Y2,…,Yn with respect to their corresponding set of data X1, X2,.., Xn. Matlab can generate multiple 2D line plots using the plot function within a loop.

Specialized Graphs Using Matlab Graphics

plot(x,y, 'o') text(x,y,labels, 'VerticalAlignment', 'top', 'HorizontalAlignment', 'left') But both of these aren't exactly what I want because the labels slightly overlap the data. Also in the second one, the label goes beyond the bounds of the axes. Usually at this point, I fiddle around with the coordinates of the text placements.

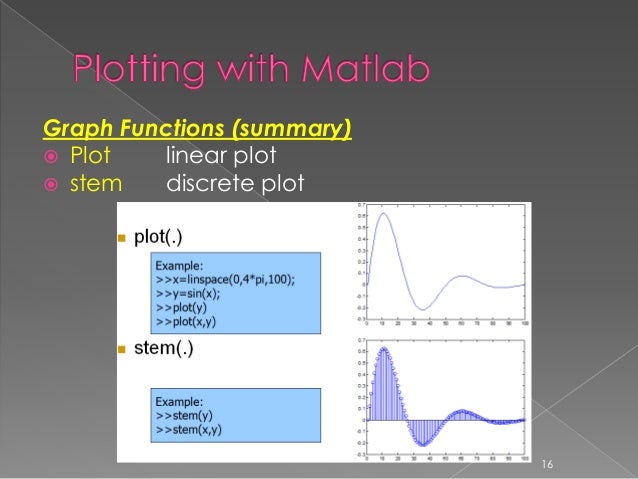

Introduction To Matlab Lecture 4 Of 4
