45 label the diagram according to the components and processes of a voltaic cell.

Part A Label the diagram according to the components and processes of a ... ANSWER:Construction of a voltaic cellConsider a cobalt-silver voltaic cell that is constructed such that one half-cell consists of the cobalt,, electrode immersed in asolution, and theother half-cell consists of the silver,, electrode immersed in asolution. The two electrodes are connected by a copper wire. Voltaic Cell Diagram & Function | What is a Voltaic Cell? | Study.com A simple cell diagram is shown in the illustration. The cell consists of an anode, a cathode, a salt bridge, and an external conducting wire. Electrons flow from the anode, which is...

Solved Label the diagram according to the components and - Chegg Question: Label the diagram according to the components and processes of a voltaic cell. Drag the appropriate labels to their respective targets. This problem has been solved! You'll get a detailed solution from a subject matter expert that helps you learn core concepts. See Answer Show transcribed image text Expert Answer 87% (266 ratings)

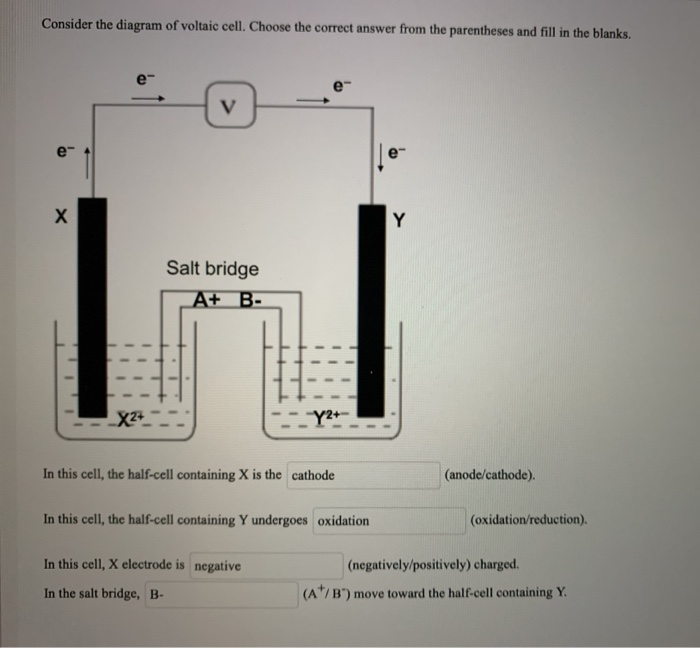

Label the diagram according to the components and processes of a voltaic cell.

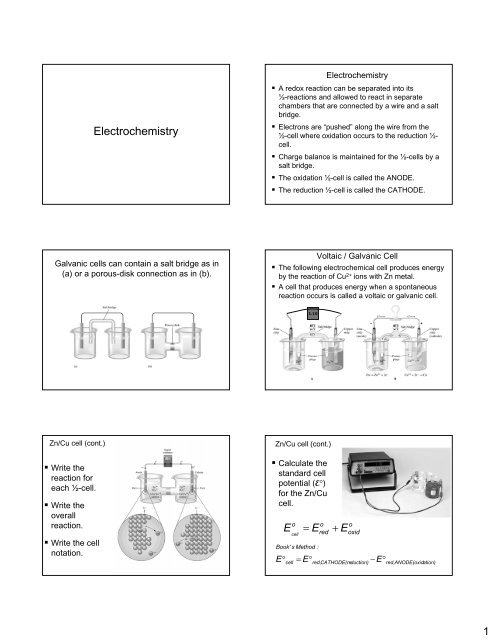

Galvanic Cells (Voltaic Cell) - Definition, Working Principle ... - BYJUS Electric work done by a galvanic cell is mainly due to the Gibbs energy of spontaneous redox reaction in the voltaic cell. It generally consists of two half cells and a salt bridge. Each half cell further consists of a metallic electrode dipped into an electrolyte. These two half-cells are connected to a voltmeter and a switch externally with ... electric cell diagram notation Describe An Electric Cell With The Help Of A Labelled Diagram. - Brainly.in brainly.in. describe labelled cell diagram electric help answer smiling keep. Label The Diagram According To The Components And Processes Of A wiringdatabaseinfo.blogspot.com. diagram according components label processes voltaic cell solved asked minutes question few ... Answered: a) Diagram and label the voltaic cell… | bartleby Science Chemistry a) Diagram and label the voltaic cell with the highest potential that could be made using the following materials: solid Cu, Fe, and Zn; and solutions of copper(II) chloride, iron(II) chloride and zinc chloride. Write out the balanced equation and determine the Eocell. If you began with 1.200 g of the metal you chose for part (a) and the battery was running at 1.50 A, how may ...

Label the diagram according to the components and processes of a voltaic cell.. Chapter 17: Electrochemistry Flashcards | Quizlet Co (s)+3Ag+ (aq)→Co3+ (aq)+3Ag (s) Complete the drawing by adding any components essential for a functioning cell. Label the anode and cathode, and indicate the direction of ion flow. ... Write a balanced equation for the cell reaction. 2Al (s)+3Co2+ (aq)→3Co (s)+2Al3+ (aq) What is the shorthand notation for the cell? Label each half cell in this diagram of a voltaic cell to identify ... The cell as shown is a voltaic cell. A voltaic cell produces electrical energy by a spontaneous chemical reaction. Oxidation occurs at the anode and reduction occur at the cathode. The electrode at the left hand side the anode where oxidation occurs while the electrode at the right hand side is the cathode where reduction occurs. Label the diagram according to the components and processes of a ... Label the diagram according to the components and processes of a voltaic cell. Drag the appropriate labels to their respective targets. Answer General guidance Concepts and reason In a voltaic cell, the oxidation reaction takes place at anode and the reduction reaction takes place at cathode. A salt bridge is used to transfer the electrons from Answered: Label the diagram according to the… | bartleby For a voltaic cell to work, the solution in the two half-cells must remain electrically neutral. This can happen only if the flow of ions is countered with the flow of electrons. The flow of ions is made possible with the use of a salt bridge. A salt bridge is a solution of some other metal that has common ions.

electric cell skematic diagram diagram 32 Label The Diagram According To The Components And Processes Of A kovodym.blogspot.com. voltaic photophysical. Electrical Circuit Cell - Circuit Diagram Images circuitdiagramimages.blogspot.com. cell circuit electrical membrane modeled electr solved. Electrical Circuits - Presentation Physics . cell electrical circuits physics electric cell diagram notation daniell reaction anode zinc copper cathode cell diagram battery electrochemistry between using chemistry voltaic cu electrochemical half electrode standard salt. Label The Diagram According To The Components And Processes Of A galvinconanstuart.blogspot.com. voltaic processes solved. Cell Notation savsaze.com. electrochemical voltaic chemical label the diagram according to the components and processes of a ... according components label diagram voltaic cell processes appropriate drag labels solved advance thanks Solved: Animation—Analysis Of Copper-Zinc Voltaic Cell Som… | Chegg.com cell zinc copper voltaic animation appropriate labels drag respective targets analysis reduction oxidation answers label diagram half components anode processes electric cell diagram notation diagram according components label processes voltaic cell thermodynamics electrochemistry crossing bridge between Voltaic Cell | Construction | Working | Examples electricala2z.com voltaic electrolytic electrolyte electrons Label The Diagram According To The Components And Processes Of A galvinconanstuart.blogspot.com voltaic processes solved

Label the diagram according to the components and processes of a ... Label the diagram according to the components and processes of a voltaic cell. Drag the appropriate labels to their respective targets. Label the diagram according Find this Pin and more on Latestby ForNoob Website. Chemical Energy The Diagram Electrical Energy Accord Appropriate Components Cell Labels Process More information... More information Solved Part A Label the diagram according to the components - Chegg Question: Part A Label the diagram according to the components and processes of a voiltaic cell. Drag the appropriate labels to their respective targets View Avalable Hints) 1.10 Sat Bndge Zinc Anode hExperiment 15 K....Chapter18-In. .pp Syllabus Ch syllabus CHE docx ^ MacBook Air esc 20 FI F2 F3 F4 F5 This problem has been solved! Chem 180 Exam 3 Flashcards | Quizlet Molecules may undergo three different types of motion: translational motion, vibrational motion, and rotational motion. During translational motion, the entire molecule moves in one direction. During vibrational motion, atoms in a molecule move toward and away from one another. During rotational motion, molecules rotate or spin. Describe the electrodes.docx - Terms in this set (28) Label the diagram ... View Describe the electrodes.docx from MANAGEMENT 6480 at Ashford University. Terms in this set (28) Label the diagram according to the components and processes of a voltaic cell. Flow of

How do you sketch galvanic cells? + Example

Answered: a) Diagram and label the voltaic cell… | bartleby Science Chemistry a) Diagram and label the voltaic cell with the highest potential that could be made using the following materials: solid Cu, Fe, and Zn; and solutions of copper(II) chloride, iron(II) chloride and zinc chloride. Write out the balanced equation and determine the Eocell. If you began with 1.200 g of the metal you chose for part (a) and the battery was running at 1.50 A, how may ...

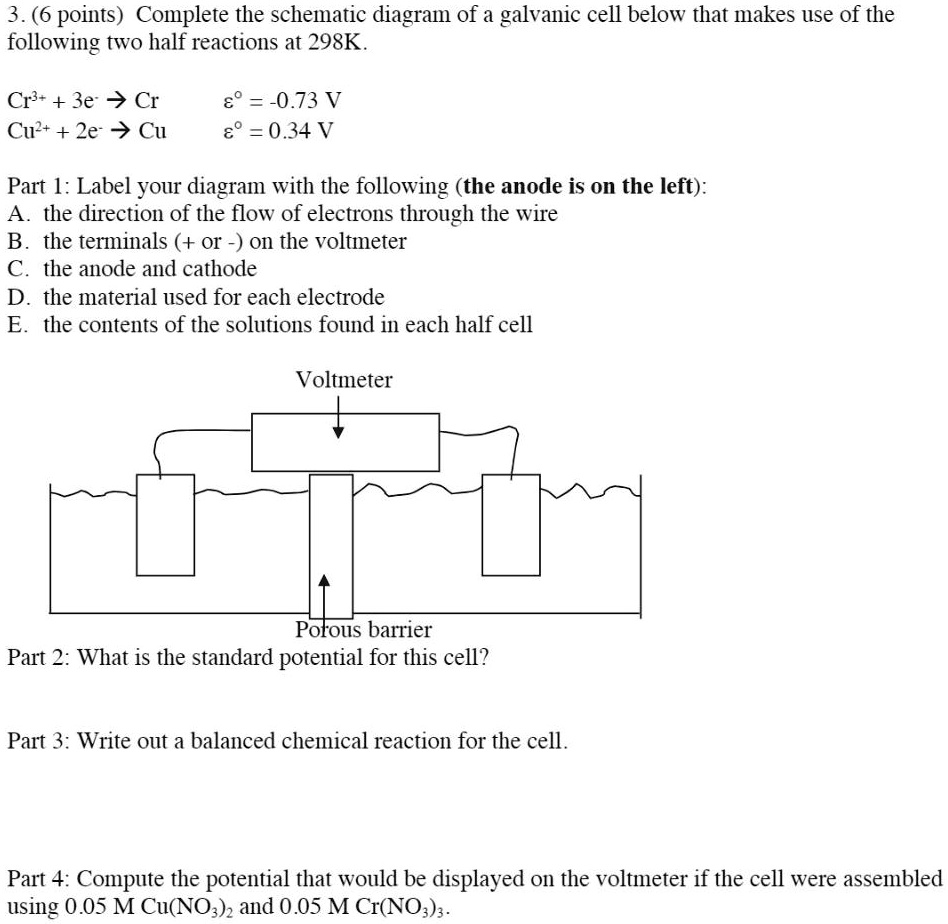

SOLVED: 3 . (6 points) Complete the schematic diagram of a ...

electric cell diagram notation Describe An Electric Cell With The Help Of A Labelled Diagram. - Brainly.in brainly.in. describe labelled cell diagram electric help answer smiling keep. Label The Diagram According To The Components And Processes Of A wiringdatabaseinfo.blogspot.com. diagram according components label processes voltaic cell solved asked minutes question few ...

'IV Post-Laboratory Assignment Using your work in Pre-Lab Question as guide, draw the cell based on Compartments and VII from Part 4 of the lab: Label all key components and illustrate the flow of ...
